A true heavy-duty workhorse for demanding outdoor jobsites, the 2015 Genie GS-5390RT Diesel Scissor Lift is engineered to maximize productivity across challenging terrain. As one of Genie&rsquo;s premier rough-terrain scissor lifts, it combines an expansive workspace with high-capacity lifting power, making it an industry favorite for cladding, glazing, and large-scale industrial construction projects.
&nbsp;
&nbsp;

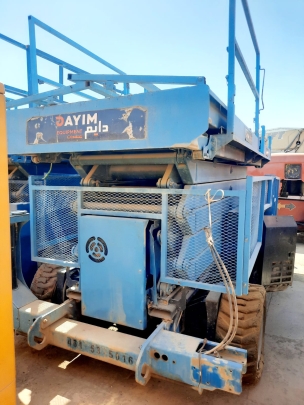

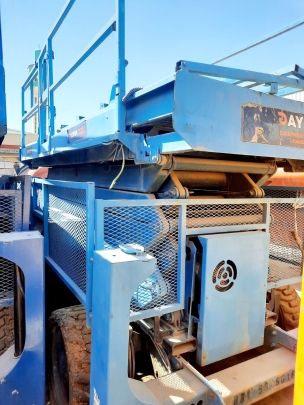

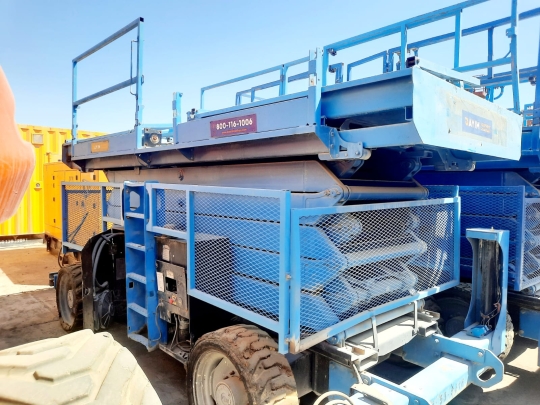

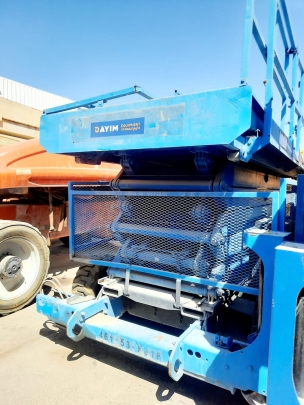

When looking at the GS-5390RT, note the heavy-duty structural design of the scissor linkage, built to maintain rigidity and minimize sway at full extension. At the base, you can see the automatic leveling hydraulic outriggers deployed, which allow the machine to flatten its stance and stabilize the chassis safely on sloped or uneven soil before lifting.
<h3 style="font-family: 'Google Sans', sans-serif !important; line-height: 1.15 !important; margin-top: 0px !important;" data-path-to-node="3">Key Specifications</h3>
<ul style="padding-inline-start: 32px; font-family: 'Google Sans Text', sans-serif !important; line-height: 1.15 !important; margin-top: 0px !important;" data-path-to-node="4">
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Max Working Height: 59 ft (18.15 m)
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Max Platform Height: 53 ft (16.15 m)
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Lift Capacity: 1,500 lbs (680 kg)
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Platform Size (Stowed): 13 ft 5 in x 6 ft (3.98 m x 1.83 m)
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Platform Size (Dual Decks Extended): 21 ft 6.5 in (6.57 m) total length
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Extension Decks: 5 ft (1.52 m) front slide-out and 4 ft (1.22 m) rear slide-out
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Engine: Deutz 3-cylinder diesel engine (~49 hp)
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Drive System: Four-wheel drive with positive traction control
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Gradeability: 40% climb capability when stowed
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Machine Width: 7 ft 6 in to 7 ft 8 in (2.29 m - 2.34 m)
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Operating Weight: Approx. 16,567 lbs (7,515 kg)
</li>
</ul>
<h3 style="font-family: 'Google Sans', sans-serif !important; line-height: 1.15 !important; margin-top: 0px !important;" data-path-to-node="5">Performance Highlights</h3>
<ul style="padding-inline-start: 32px; font-family: 'Google Sans Text', sans-serif !important; line-height: 1.15 !important; margin-top: 0px !important;" data-path-to-node="6">
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Advanced Rough-Terrain Capability: Built with a patented full-time oscillating axle that dynamically adjusts to fluctuating ground levels. Combined with full-time 4WD, it easily handles deep mud, gravel, and steep jobsite inclines.
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Massive Crew &amp; Material Area: The multi-position dual slide-out extensions expand the diamond-plate steel deck to over 21 ft. This lets you fit large material bundles alongside multiple crew members without crowding the workspace.
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Quick, Smart Setup: The standard hydraulic outriggers handle self-leveling tasks automatically on slopes up to 7&deg; front-to-back and 12&deg; side-to-side, removing guesswork and keeping work windows efficient.
</li>
<li style="line-height: 1.15 !important; margin-top: 0px !important;">
Streamlined Maintenance: Includes a slide-out engine tray for open access to critical components and an onboard diagnostic system for prompt troubleshooting in the field.
</li>
</ul>
